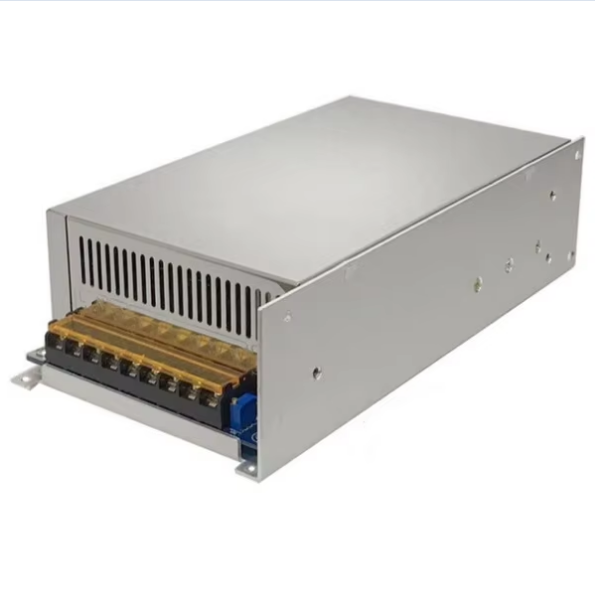

Switching Power Supply 360W 7.5A 48V Meanwell SMPS

This product is 360W 7.5A 48V Switching Power Supply S-360-48 Meanwell SMPS


Short Description:

360W 7.5A 48V Switching Power Supply S-360-48 Meanwell SMPS DC Output

DC Voltage:48V DC

Current :7.5A

Ripple & Noise: 80MV DC

Adjustable Range: ±10%

Rated Voltage Voltage Tolerance: ±2.0%

Line Regulation: ±0.5%

Load Regulation: ±1%

Setup,Rise Time,

Hold Up Time:200ms,50ms, 20ms/230VAC

AC Input AC Voltage Range: 85-264VAC

Frequency Range: 47-63Hz

Efficiency:90%

AC Current: 0.86/115V  0.4A/230V

AC Inrush Current: 20A/115V   40A/230V


360W 7.5A 48V Switching Power Supply S-360-48 Meanwell SMPS



DC OutputDC Voltage:48V
DC Current :7.5A
Ripple & Noise: 80MV
DC Adjustable Range: ±10% Rated Voltage
Voltage Tolerance: ±2.0%
Line Regulation: ±0.5%
Load Regulation: ±1%
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC
AC InputAC Voltage Range: 85-264VAC
Frequency Range: 47-63Hz
Efficiency:90%
AC Current: 0.86/115V  0.4A/230V
AC Inrush Current: 20A/115V   40A/230V
Leakage Current< 0.5mA /240VAC
ProtectionOver-load: 105%-150% hiccup mode,Auto-recovery
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
Over-temp. : Shut down O/P voltage, Auto-recovery
EnvironmentWorking temp.: -10~ +60C°  (Refer to output load derating curve)
Working Humidity:20 ~ 90% RH, non-condensing
Storage Temp.: -10~ +60C°
Storage Humidity: 10 ~ 95% RH
SafetyIsolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Safety standards: CE,RoHS,FCC,ISO9001
