brush dc motor,
with or without driver
less than 100watt
1.8w 9600rpm without gearbox
12v/24v
Products Information

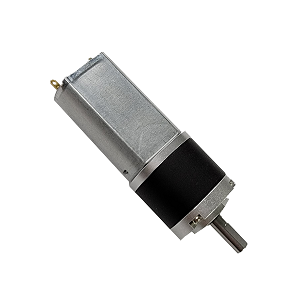

Product attributes | 12V/24V 22mm gear Brush DC motors |
Features & advantages | High speed, brush,long life time,reliable,high efficient,save energy |
Product application | industrial,commercial,Agriculture applications and machine,such as AGV,lown mower machine,big printer,ATM... |
Products Details
Products Datalist
| Model name | Rated voltage | No load speed | Load current | Load torque | Weight | Match gearbox |
| D180 | 12/24v | 4400/9600rpm | 90/140mA | 13/20 gf.cm | 0.35KG | P22 |
Products Drawings
Notes
this motor can be made with inside driver built-in or outer driver
